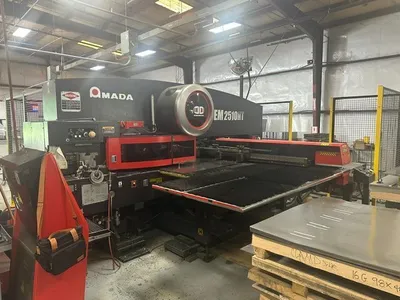

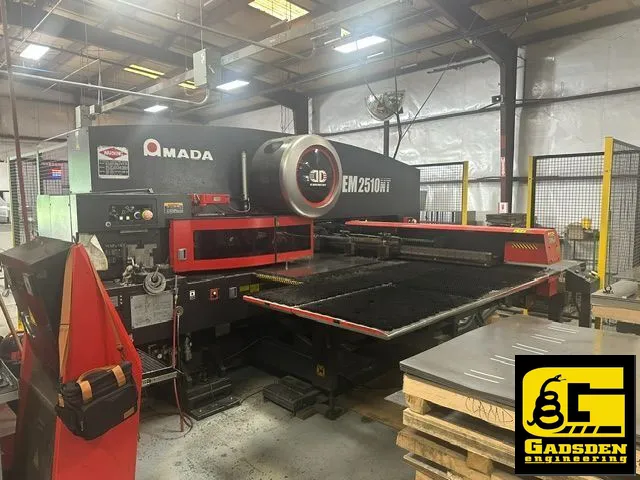

2005 AMADA EM2510NT

Core Specifications
Press Capacity: 22 tons (200 kN)
Maximum Sheet Size: 50” x 100” (1270 mm x 2540 mm) without repositioning
Maximum Material Thickness: Up to 0.25” (6.35 mm)
Number of Turret Stations: Standard 45 stations (including 4 auto-index stations)
Axis Travels: X-Axis = 98.4” (2500 mm) | Y-Axis = 50” (1270 mm)
Punch Stroke: 1.65” (42 mm)

Performance & Speeds
Hit Rate: Up to 500 hits per minute (HPM) on 1” centers; up to 900 HPM for marking
Feed Rate: 100 m/min (3937 IPM) on the X-axis and 80 m/min (3150 IPM) on the Y-axis
Drive System: Twin AC servo direct drive (eliminates the need for complex hydraulics or oil chillers)

Features & Utilities
Controller: Fanuc-based PC Network CNC (AMNC-PC)
Work Table: Brush design with built-in balls to prevent scratching
Slug Control: Patent-pending power vacuum slug pull system to eliminate slug pulling
