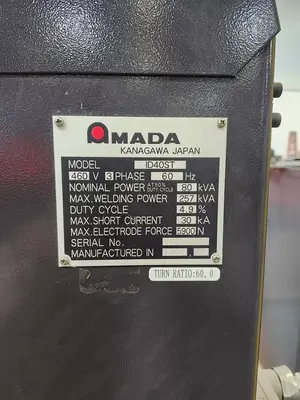

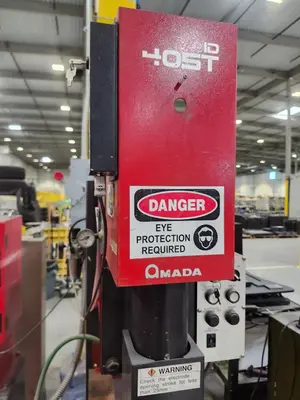

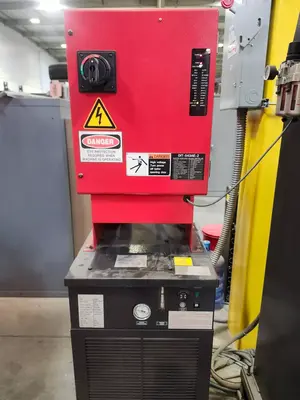

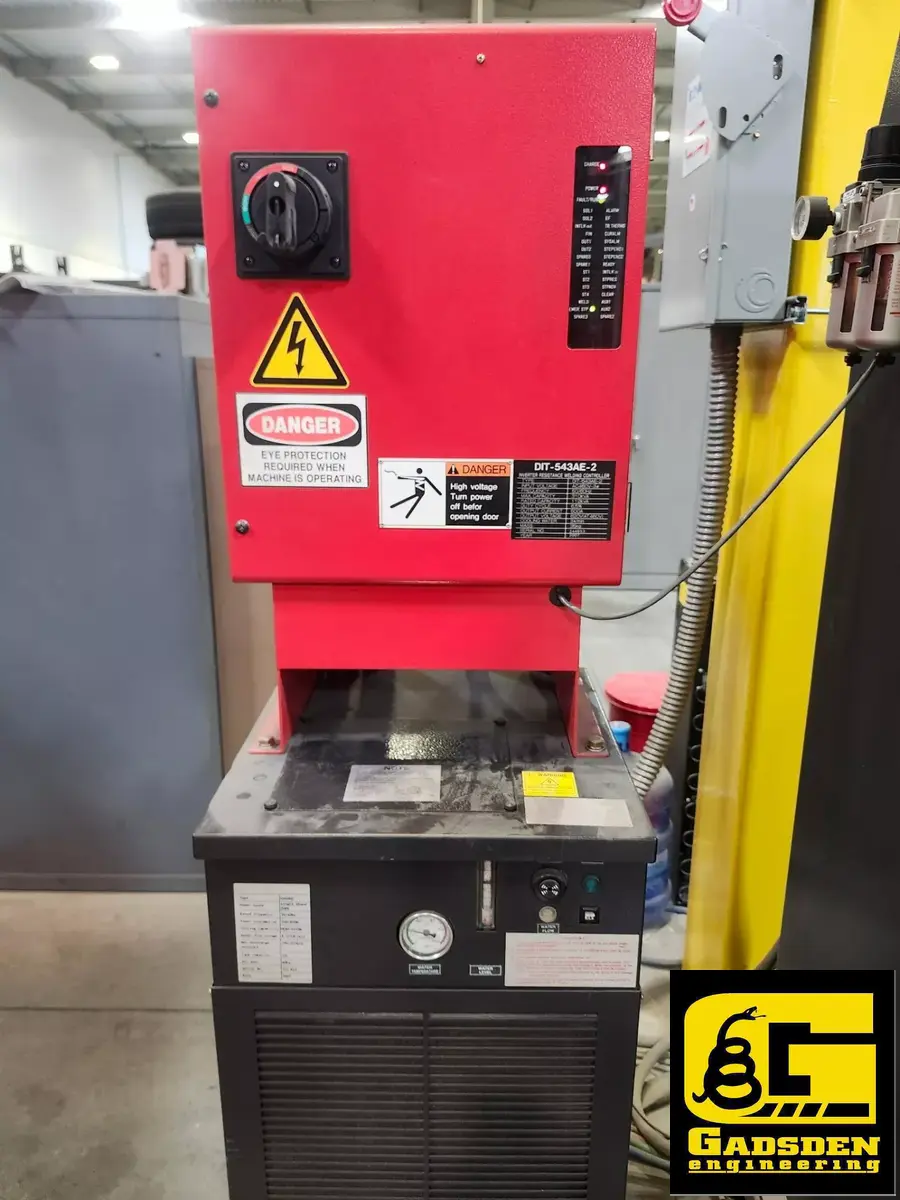

2007 AMADA ID-40-ST

Capacity & Materials
Rated Capacity: \(80 \text{ kVA}\) (at 50% duty cycle)Max.
Power Input: \(135 \text{ kVA}\)
Maximum Welding Current: \(30,000 \text{ A}\)
Material Max. Thickness: Mild Steel (SPCC / SECC): \(3.2 \text{ mm} + 3.2 \text{ mm}\)Stainless Steel (SUS): \(3.0 \text{ mm} + 3.0 \text{ mm}\)Aluminum (AL): up to \(2.5 \text{ mm} + 2.5 \text{ mm}\)

Physical & Throat Specs
Standard Throat Dimensions: \(200 \times 600 \text{ mm}\) (gap × depth)
Maximum Electrode Force: \(5,800 \text{ N}\) (at \(0.5 \text{ MPa}\))

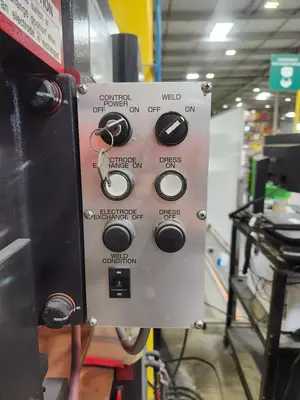

Electrode Stroke: (2-step change via foot switch)
Machine Weight: 600 Lbs

Utility Requirements
Power Source: 3-Phase, 460 V, 60 Hz

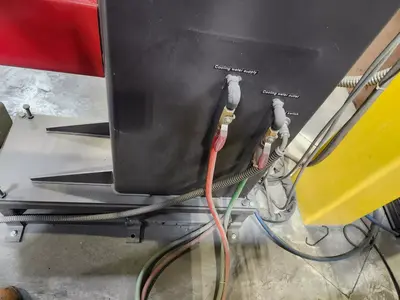

Cooling Water Flow Rate: \(10 \text{ L/min}\)
Air Pressure: \(0.155\) to \(0.3 \text{ MPa}\)
