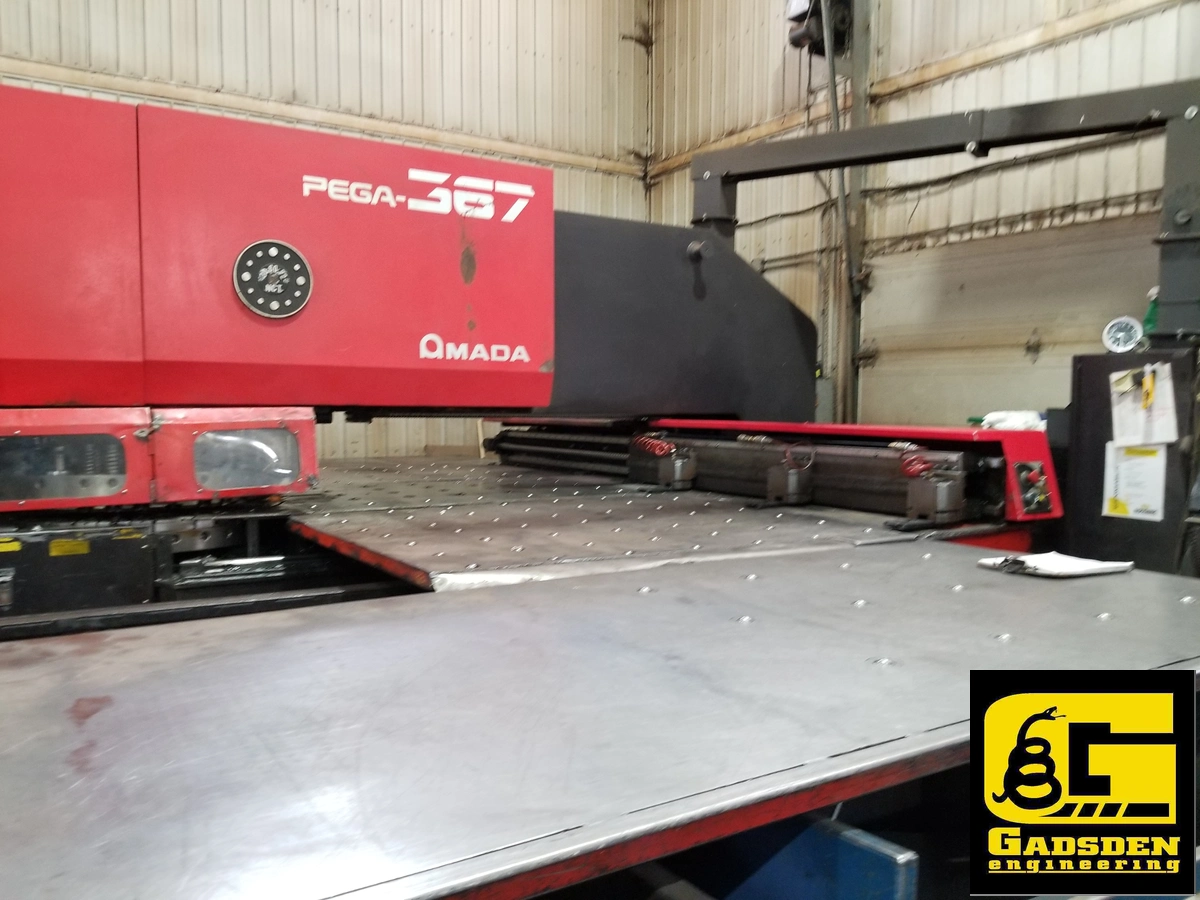

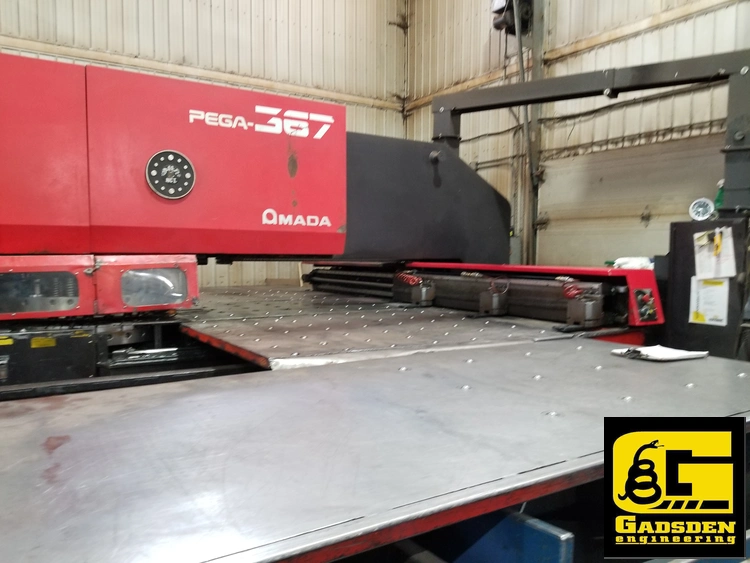

Amada Pega 367 Turret Punch Press
Turret PunchesAmada Turret Punch Press - Pega 367
Tonnage | 33 T |
# Turret Stations | 58 |
Control | CNC (Fanuc 04PC) |
Dimensions | 199"L x 149"W x 93.5"H |
Weight | 30,000 Lbs |
Capacity 30 tons
Sheet Size 60 x 72
Thickest Material 1/4 "
Max Hole Diameter 4.5"
Number of Turret Stations 58 with 2 A/I
Strokes Per Minute 350
Axis Speed 2000 IPM
Hits Per Min. 1" centers 220
Control Model Fanuc 04PC
Drive motors AC Servo
Smallest Programmable Increment .001"
Power Requirements 230/460/60/3 phase
Machine Weight 30,000 lbs
Fanuc 04PC CNC Control
2 Work Clamps
